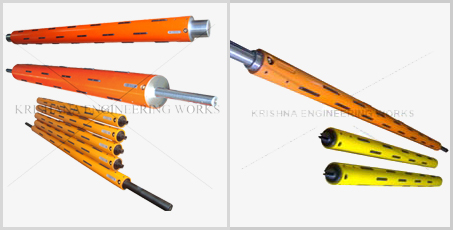

Air Shaft, Air Pneumatic Shaft, Mechanical Air Shaft Supplier

Krishna Engineering Works is a company engaged in Manufacturing, Exporting & Supplying of Air Shaft like Mechanical Shaft, Quick Lock Shafts, Multi Tube Shafts and, Air Expandable Shaft. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing.

Standard Features
Technical Specification
Video
Quick Inquiry

Sizes:
- Suitable for core ID. 3" and 6"
- Length as per requirement.
Capabilities:
- Load up to 2 tons
- Suitable for Core l. D. dia 3", 4", 6", 8" (metric size and special sizes also produced)
- Length as required
- Speed up to 1000 Mtrs/min
- Suitable for core materials: Paper, Steel, Thermoplastics
- Minimum core width 20 mm
General Materials of Construction:
- Pipe – Steel
- End Generals – Steel – simple or hardened
- Cam – Brass
- Lugs – Hardened Steel / Rubber
Types Of Air Shaft:
- Mechanical Shaft
- Quick Lock Shaft
- Multi-Tube Shaft
- Air Expandable Shaft
- Lug Shaft
- Ball Shaft
- Mechanical Expanding Shaft
- Bottom Knife Holding Shaft
- Multi Bladder Shaft
Differential Shaft is a sophisticated winding shaft for slitter rewinder machine, used as duplex shaft winder (center winding type).
- It is capable of compensating speed variation due to gauge variation with multi cores.
- Minimum 20 mm core width is possible.
- Reel holding is possible at any position across the width.
- No-time lost in re-positioning cores since no distance pieces are required.
- Shaft can run at very high speed.
This shaft consists of slotted shaft, rubber bladders, hard and ground steel cage with ball type gripper. Teflon® strip for better slippage and self lubricating segments separating two adjacent steel cages.
